Computer Numerical Control (CNC)

Computer Numerical Control (CNC)

CNC (Computer Numerical Control) is an automated control system used in manufacturing machines such as mills, lathes, routers, and grinders. It allows machines to operate with precision, repeatability, and minimal manual intervention by following pre-programmed instructions (G-code & M-code).

How CNC Works :

• 1. Designing the Part

  The operator creates a CAD (Computer-Aided Design) model of the part.

• 2. Generating the CNC Program


  The CAD file is converted into CAM (Computer-Aided Manufacturing) software, which generates G-code (machine instructions).

Send Enquiry

• 3. Machine Setup


The workpiece is mounted, and the appropriate tools are loaded into the machine.

• 4. Execution


The CNC controller reads the G-code and moves the machine along the specified X, Y, and Z axes to cut, drill, or shape the material.

• 5. Quality Check


After machining, the part is inspected using CMM (Coordinate Measuring Machines) or other measurement tools.

Types of CNC Machines

• CNC Milling Machines (VMC, HMC) : Used for cutting and drilling operations

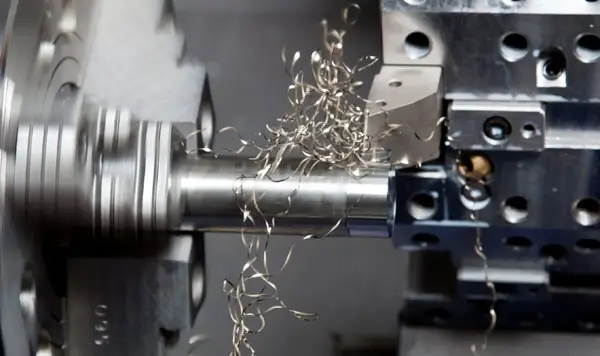

• CNC Lathes (Turning Centers) : Rotates the workpiece for shaping with a stationary cutting tool.
• CNC Routers : Used for cutting wood, plastics, and soft metals.
• CNC Plasma Cutters : Uses plasma to cut metal.
• CNC Laser Cutters : Uses lasers for high-precision cutting.
• CNC EDM (Electrical Discharge Machines) : Uses electrical sparks to cut hard materials.

Advantages of CNC

✅ High Precision & Accuracy : Achieves micron-level tolerances.
✅ Repeatability : Produces identical parts with minimal variation.
✅ Automation & Efficiency : Reduces manual labor, increases production speed.
✅ Complex Geometry : Can create intricate shapes that are difficult with manual machining.
✅ Reduced Waste : Optimized material usage minimizes errors and waste.
